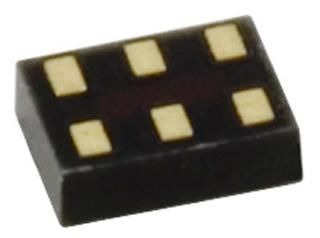

Analog Switch Single SPDT 6-Pin MicroPak W T/R, FSA4157L6X, ON Semiconductor

The FSA4157 is high performance Single Pole/Double Throw (SPDT) analog switch. Feature ultra low RON of 1.15O maximum at 4.5V VCC and operates over a wide VCC range of 1.65V to 5.5V for FSA4157. The device is fabricated with sub-micron CMOS technology to achieve fast switching speeds and is designed for break-before-make operation. The select input is TTL level compatible.

  • Maximum 1.15 ohm On Resistance (RON) at 4.5V VCC
  • 0.3 ohm max RON flatness at 4.5V VCC
  • Space saving 6-lead Pb-Free MicroPak™ and SC70 6-lead surface mount packages
  • Broad VCC operating range:
  • FSA4157: 1.65V to 5.5V
  • Fast turn-on and turn-off time
  • Break-before-make enable circuitry
  • Over-voltage tolerant TTL compatible control circuitry

Характеристики

Бренд

Конфигурация

Single SPDT
Msl_level

1
Mounting

Surface Mount
Max_turn_on_time

50@3.6V ns
Max_processing_temp

260
Max_power_dissipation

180 mW
Max_on_resistance

4@2.7V Ohm
Kind

Analog Switch
Input_signal_type

Single
Htsn

8542390001
Eccn

EAR99
Country_of_origin

Thailand
Chip_enable_signals

Yes
Operating_temp

-40 to 85 °C
Number_of_inputs_per_chip

1
Operating_supply_voltage

1.65 V, 5.5
Max_on_resistance_range

1 to 5 Ohm
Supplier_package

MicroPak W
Number_of_outputs_per_chip

2
Specifications

https://4donline.ihs.com/images/VipMasterIC/IC/FAIR/FAIR-S-A0001818053/FAIR-S-A0001818053-1.pdf?hkey=52A5661711E402568146F3353EA87419
Schedule_b

8542390000
Product_dimensions

1.45 x 1 x 0.5 mm
Power_supply_type

Single
Pin_count

6
Output_signal_type

Differential
Number_of_channels_per_chip

1
Артикул: FSA4157L6X

Описание

The FSA4157 is high performance Single Pole/Double Throw (SPDT) analog switch. Feature ultra low RON of 1.15O maximum at 4.5V VCC and operates over a wide VCC range of 1.65V to 5.5V for FSA4157. The device is fabricated with sub-micron CMOS technology to achieve fast switching speeds and is designed for break-before-make operation. The select input is TTL level compatible.

  • Maximum 1.15 ohm On Resistance (RON) at 4.5V VCC
  • 0.3 ohm max RON flatness at 4.5V VCC
  • Space saving 6-lead Pb-Free MicroPak™ and SC70 6-lead surface mount packages
  • Broad VCC operating range:
  • FSA4157: 1.65V to 5.5V
  • Fast turn-on and turn-off time
  • Break-before-make enable circuitry
  • Over-voltage tolerant TTL compatible control circuitry

Детали

Бренд

Конфигурация

Single SPDT
Msl_level

1
Mounting

Surface Mount
Max_turn_on_time

50@3.6V ns
Max_processing_temp

260
Max_power_dissipation

180 mW
Max_on_resistance

4@2.7V Ohm
Kind

Analog Switch
Input_signal_type

Single
Htsn

8542390001
Eccn

EAR99
Country_of_origin

Thailand
Chip_enable_signals

Yes
Operating_temp

-40 to 85 °C
Number_of_inputs_per_chip

1
Operating_supply_voltage

1.65 V, 5.5
Max_on_resistance_range

1 to 5 Ohm
Supplier_package

MicroPak W
Number_of_outputs_per_chip

2
Specifications

https://4donline.ihs.com/images/VipMasterIC/IC/FAIR/FAIR-S-A0001818053/FAIR-S-A0001818053-1.pdf?hkey=52A5661711E402568146F3353EA87419
Schedule_b

8542390000
Product_dimensions

1.45 x 1 x 0.5 mm
Power_supply_type

Single
Pin_count

6
Output_signal_type

Differential
Number_of_channels_per_chip

1
